GRIP specializes in automatic and manual tool changers as well as energy feedthroughs, pneumatic grippers and robot accessories.
SHW063

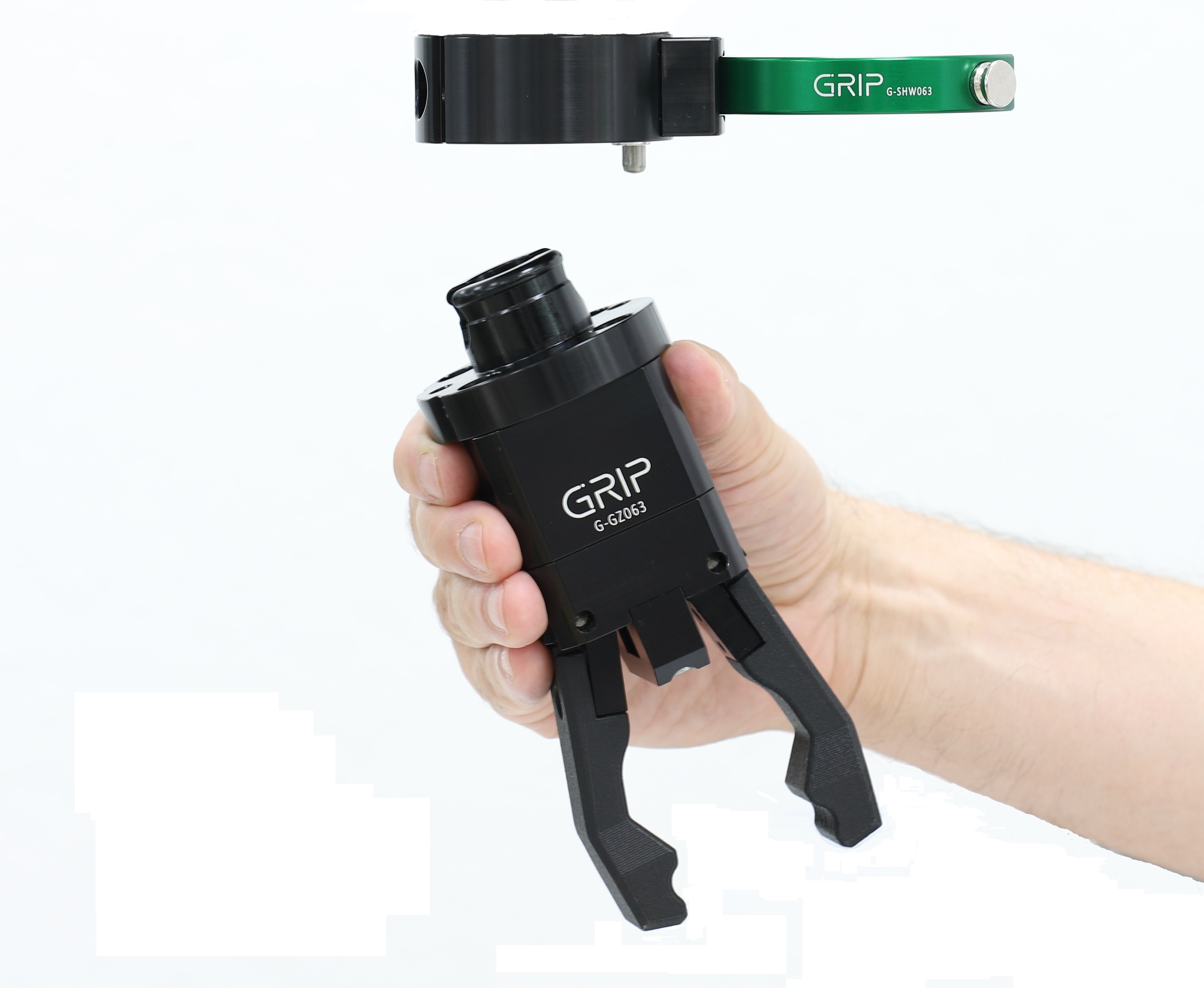

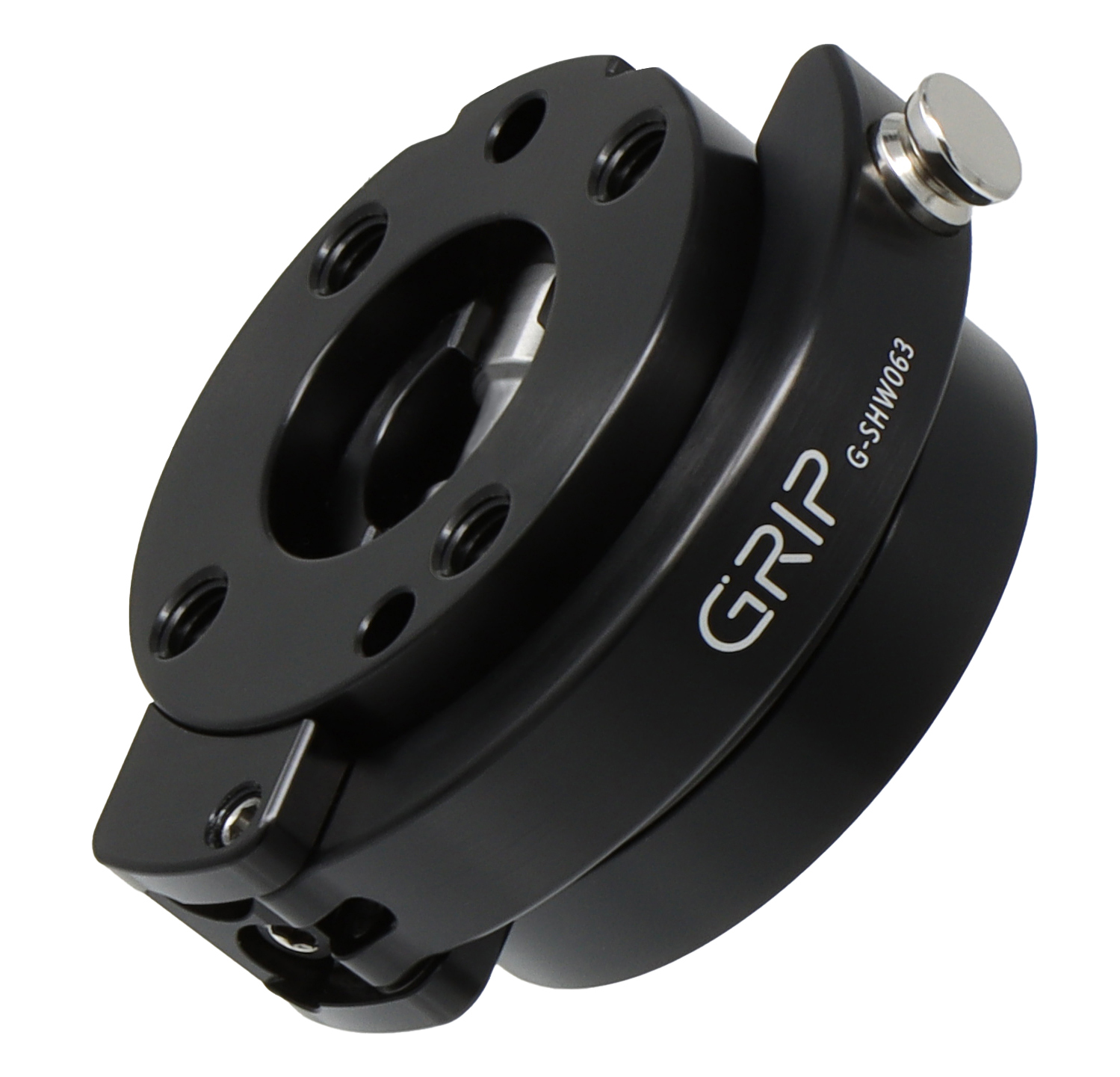

The SHW Connector was designed to be precise, durable and intuitive. The SHW Connector allows users to quickly change out tools, grippers or applications on a robot arm. This is accomplished through a mechanical release lever with a built-in safety. The Connector is comprised of an upper and a lower assembly. The upper assembly is attached to the robot arm while the lower assembly is attached to the tool/gripper. Connecting the two assemblies, connects the tool/gripper to the robot arm. This allows very quick installation of different tools without having to unscrew any part of the robot. This can be accomplished even with air and energy. Changing a tool/gripper with a GRIP Connector takes but a few seconds.
- High repeatability < 0.02 mm
- Durable – over 5000 application changes with no loss in accuracy
- Withstands high loads with low dead weight
- Toolless due to integrated operating lever
- Intuitive operation: can be released and closed with one hand
- Lightweight made of high-strength aluminum, anodized
- Integrated mounting surface for energy feed-through
- Locking pin secures the hand lever against unintentional release
