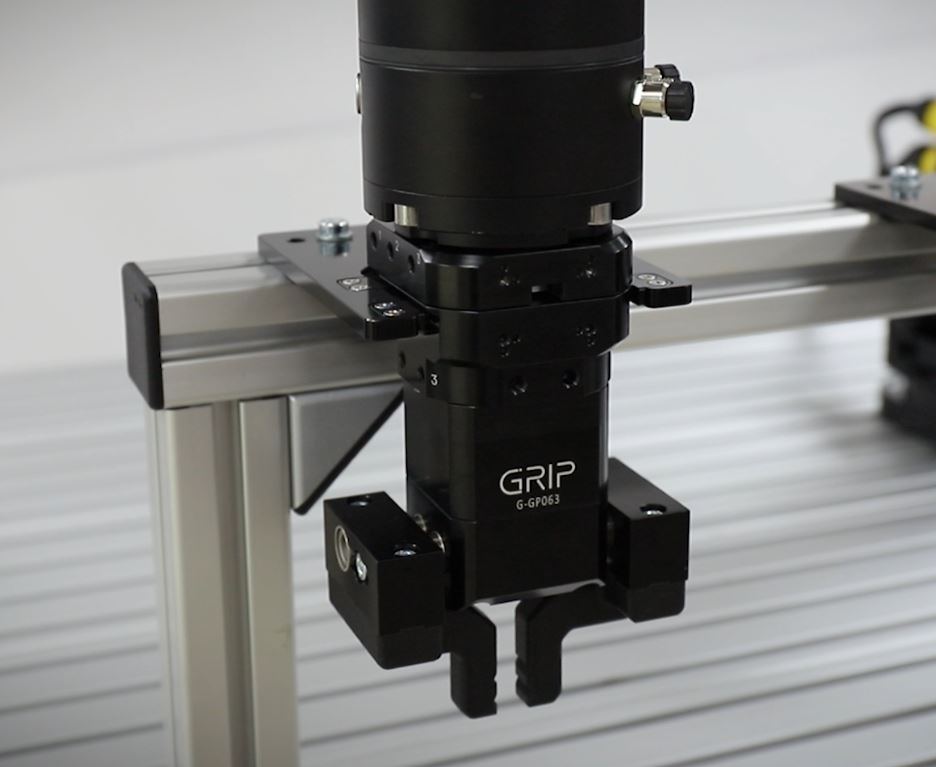

The Auto Connector is a fully automatic mechanical end of arm tool changer. The system is composed of an upper assembly and a lower assembly. The upper assembly houses the locking mechanism, which ensures a precise and form-locking fitment between the upper and lower assembly. The locking and unlocking mechanism is activated through the robots own movement. Trays make it possible to park multiple types of end of arm tools. An external energy source is not required for the Auto Connector to perform its automatic tool change.
Features
Fully automatic end of arm tool changer
Interface according to DIN EN ISO 9409-1
High repeatability < 0.02 mm
Durable – withstands over 1,000.000 changing cycles
Withstands high loads with low dead weight
The robot’s own movement activates the locking and unlocking mechanism
No external energy such as compressed air or electric are required
Integrated pneumatic feed-throughs
Module for electric actuated tools is optional
Machined out of high strength aluminium and anodized
A spring actuated pin ensures additional safety during operation
The GRIP Base Connector allows quick and easy removal of the entire robot arm. The robot arm is bolted to a special tool changer which is bolted to a table or cell. This manual tool changer system allows companies to use the same robot in multiple different cells without having to unscrew the robot every time. A simple lever allows the robot to be released from its current position and taken to a new position

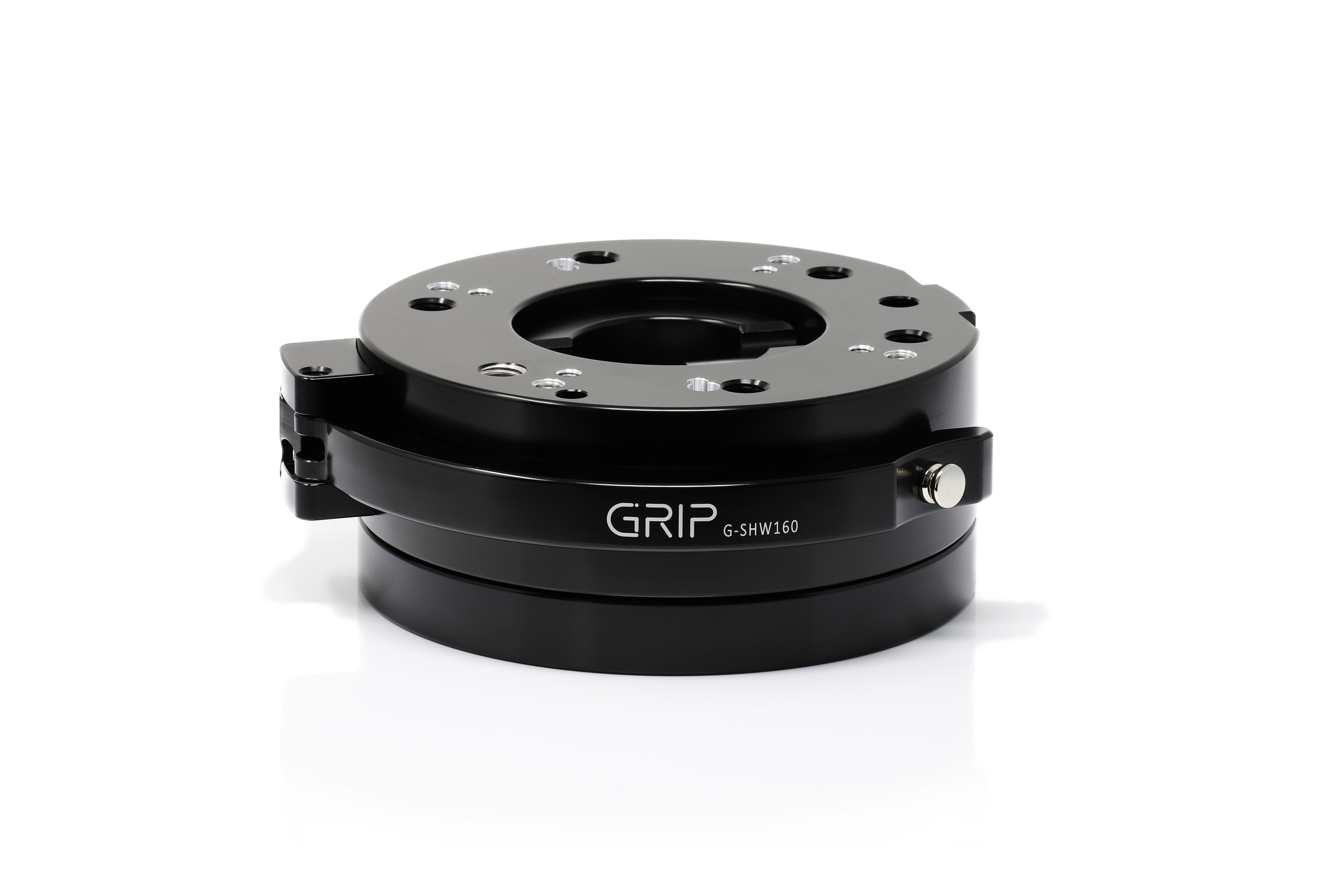

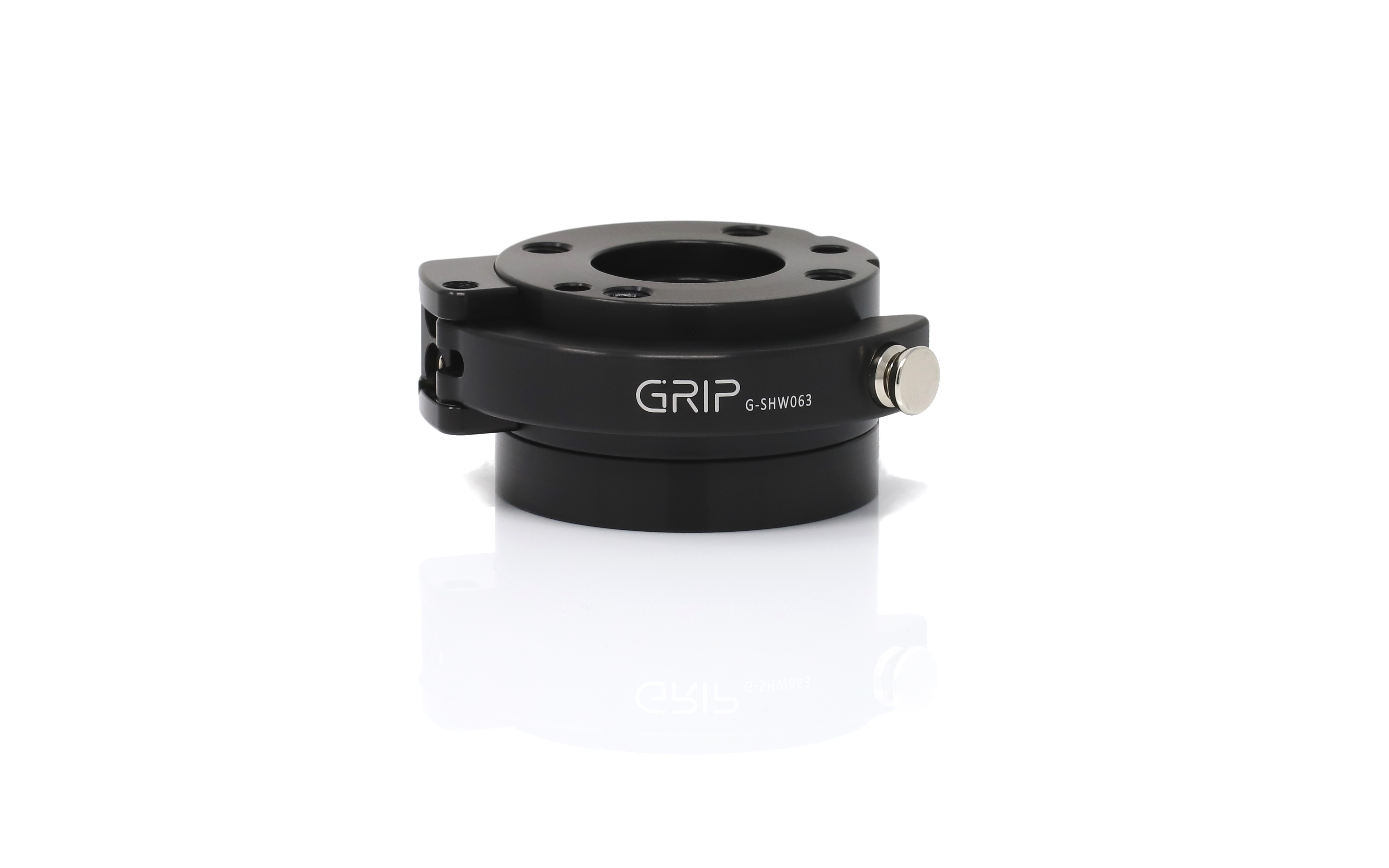

The SHW Connector was designed to be precise, durable and intuitive. The SHW Connector allows users to quickly change out tools, grippers or applications on a robot arm. This is accomplished through a mechanical release lever with a built-in safety. The Connector is comprised of an upper and a lower assembly. The upper assembly is attached to the robot arm while the lower assembly is attached to the tool/gripper. Connecting the two assemblies, connects the tool/gripper to the robot arm. This allows very quick installation of different tools without having to unscrew any part of the robot. This can be accomplished even with air and energy. Changing a tool/gripper with a GRIP Connector takes but a few seconds.
Features
High repeatability < 0.02 mm
Durable – over 5000 application changes with no loss in accuracy
Withstands high loads with low dead weight
Toolless due to integrated operating lever
Intuitive operation: can be released and closed with one hand
Lightweight made of high-strength aluminum, anodized
Integrated mounting surface for energy feed-through
Locking pin secures the hand lever against unintentional release
