At Spin Robotics, we produce plug-n-produce screwdriving tools for easy assembly with collaborative robots. Our end-of-arm tools are safe alongside workers, affordable, and easy to use. Our cobot screwdrivers will remove manual and repetitive tasks, which helps to reduce the risk of injuries, all while cutting down assembly time up to 60%. With a more flexible production, our end-of-arm tool will shorten the ROI, give data insights into your company's assembly line, and increase productivity. Spin Robotics is a part of the Odense Robotics cluster, located on the island of Fyn in the heart of Denmark. Interested? Read more: http://bit.ly/3DvzbNI

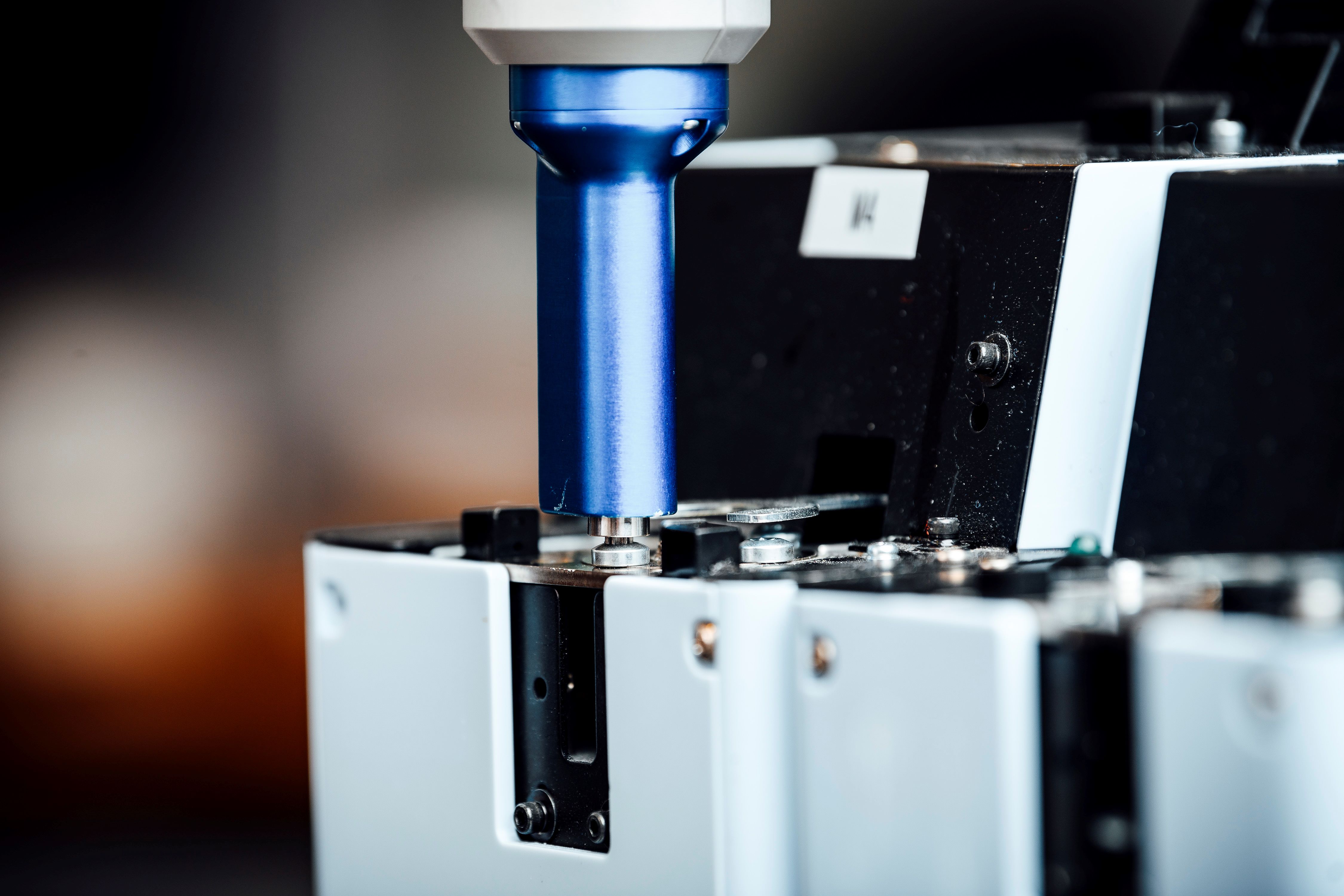

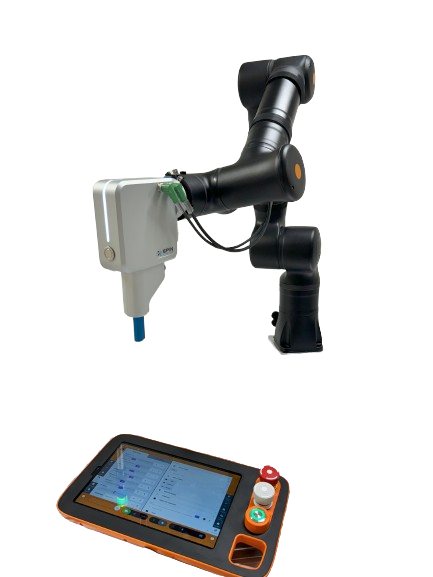

Automatic cobot screwdriver - SD-series

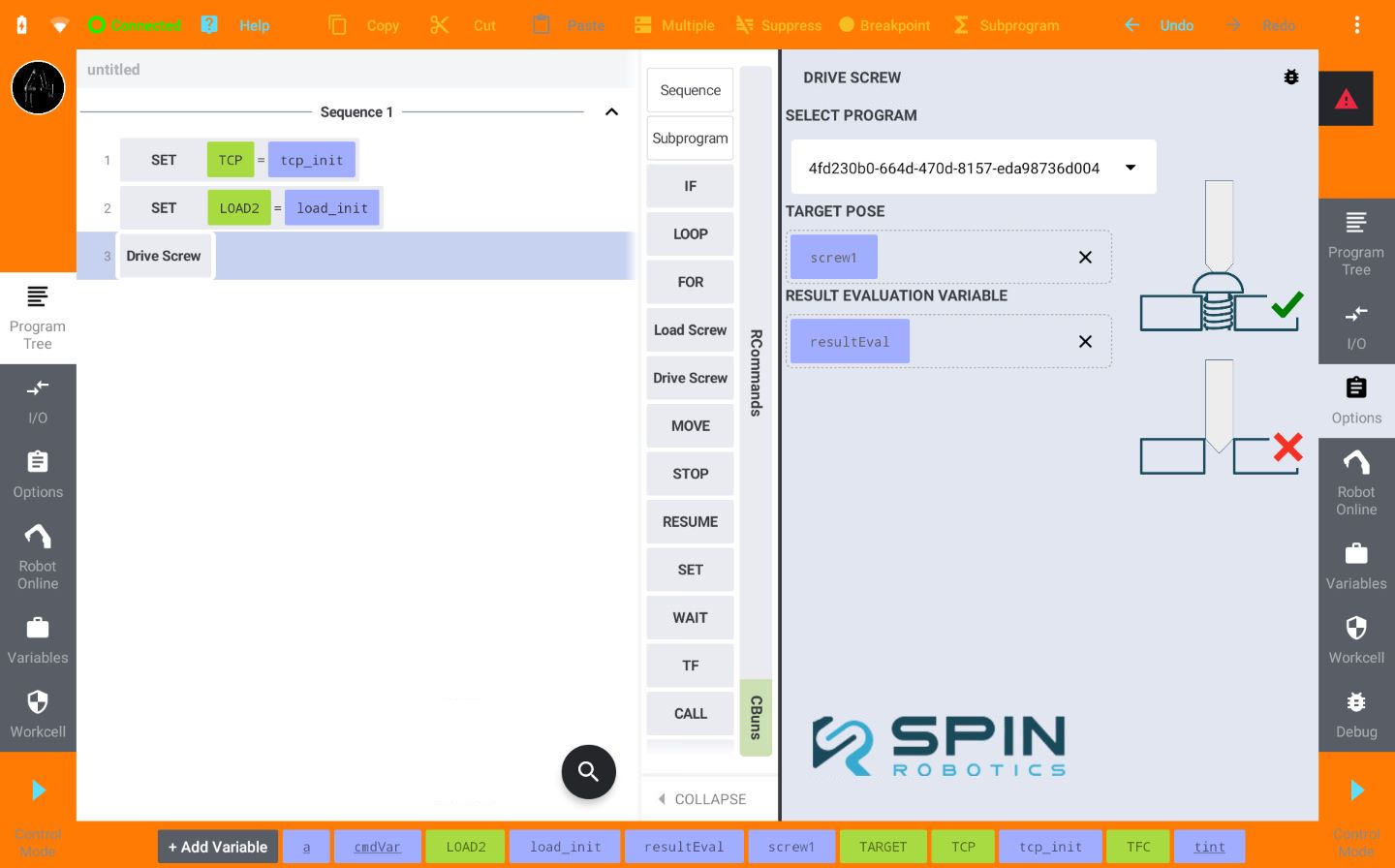

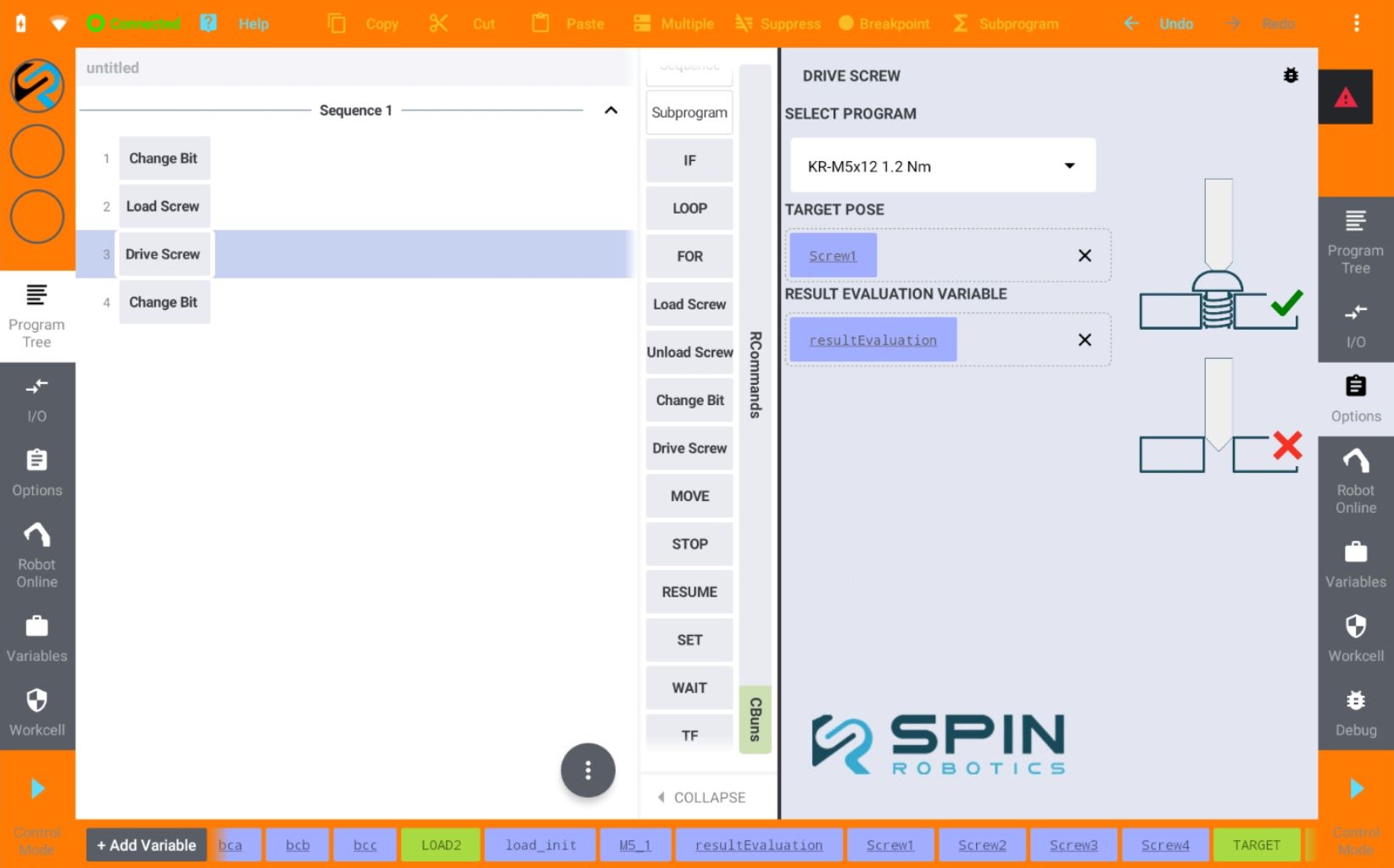

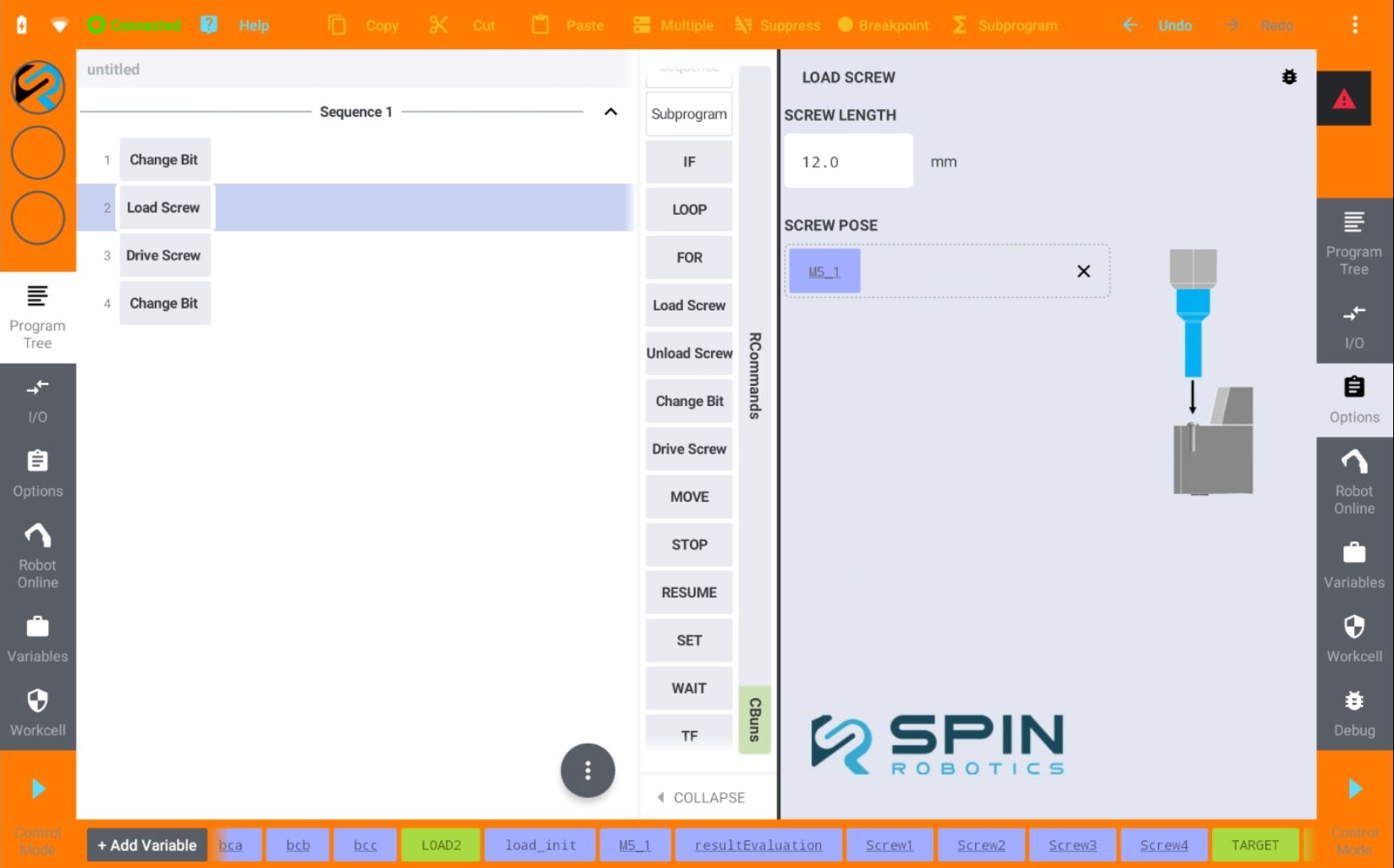

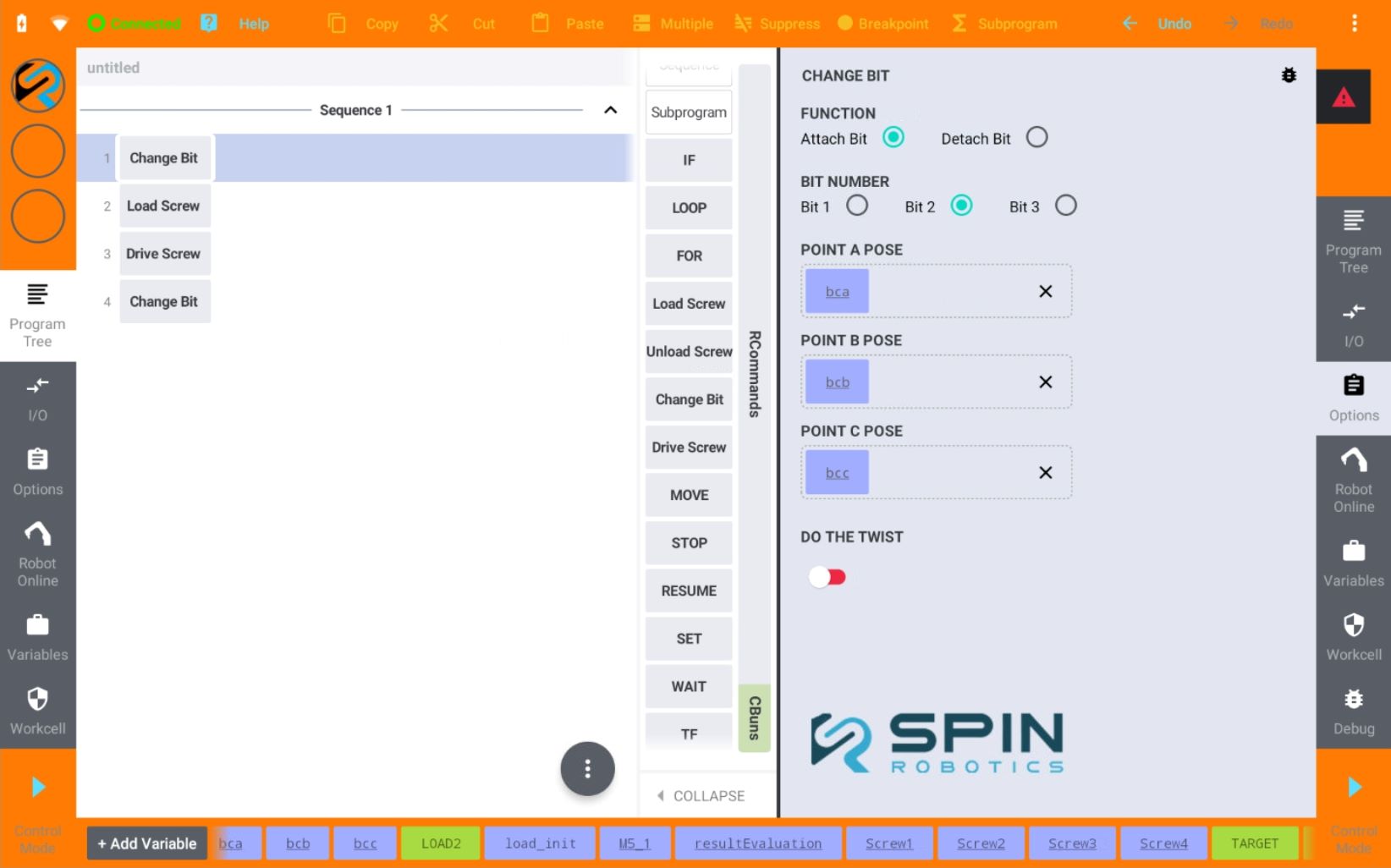

The SD-Series are pick & place screwdriver systems for easy, consistent screw assembly (0.15-7.0 Nm torque). It features safety sensors and an optional bit changer for versatility. Deep pocket holes are accessible without compromising safety. The SpinBridge screw process controller ensures quality with Industry 4.0 software, allowing data visualization and monitoring. Access data via web interface or share it across the factory using OPC-UA. The system supports magnetic screw types. A CBunX plugin provides program commands for driving the screw, automatic attach/detach bit & pick a screw in the included screw presenter.
Versatile use: The automatic bit changer together with the tool allows you to work on multiple projects involving different screw types and sizes.
Safe alongside employees: SD-Series features a safety shield and a safety sensor (PLd) allowing it to work safely around employees by protecting humans from rotating and sharp elements.
Fast and slim: Inserts 6 screws in less than a minute, even in narrow and hard-to-reach spaces.
Fast programming: Touch-up programming with the supplied teach pointer. Simply put the Teach Pointer in the tool and pinpoint the exact position of the screw holes by dragging the robot.
Industry 4.0 enabled: Visualize and check your production quality on a screen. No more missing screws and returned batches!

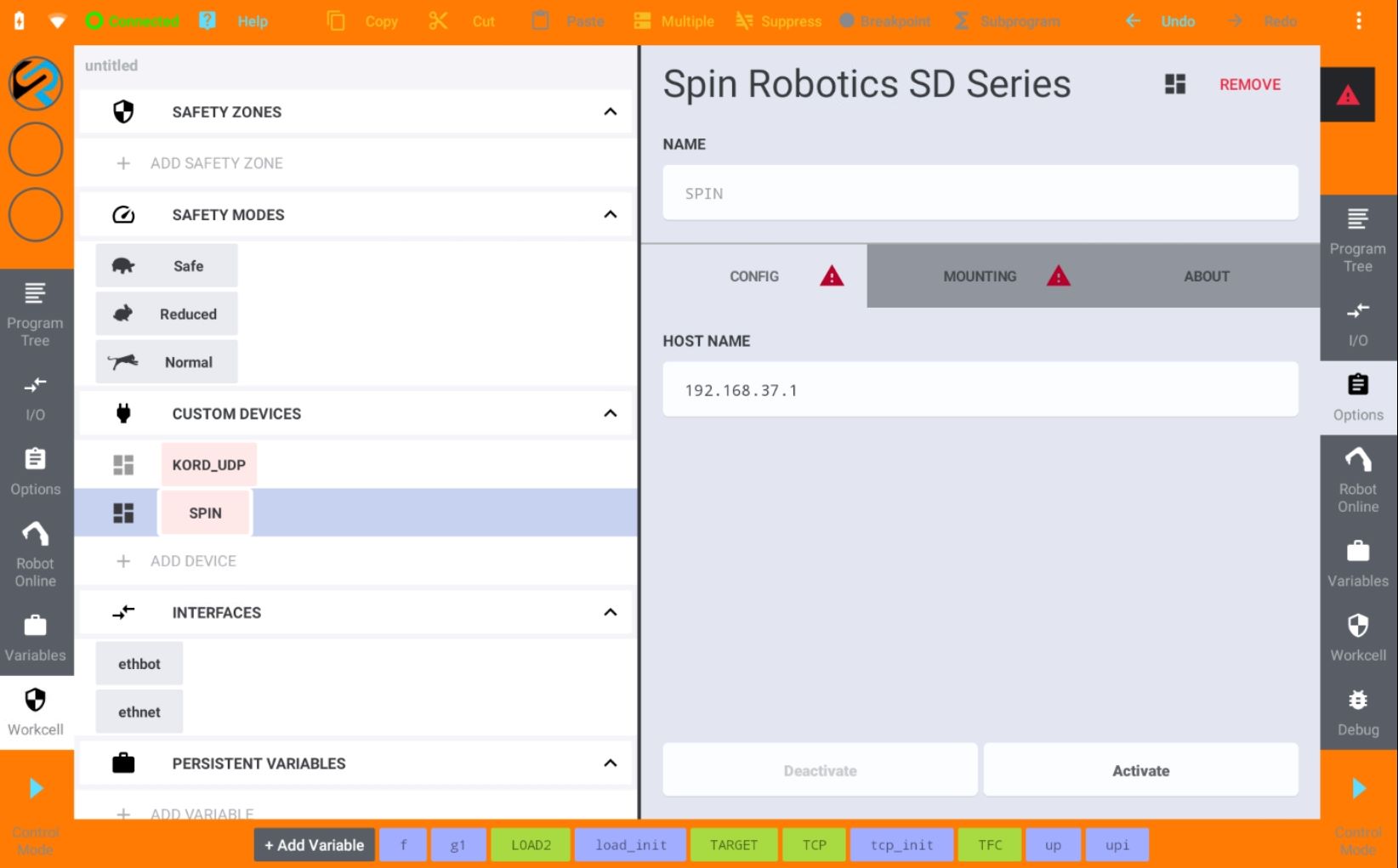

Plug & Play: via CbunX plugin for Kassow Robots
Tool
- True collaborative safety – Safety shield and PLd sensor
- Tightening torque from 0.15-7.0Nm
- 0-750 Rpm
- Screw size – M2-M8
- Screw length up to 35mm for full safety – (screw covered by safety shield)
- Automatic bit change – Change the bit on the fly

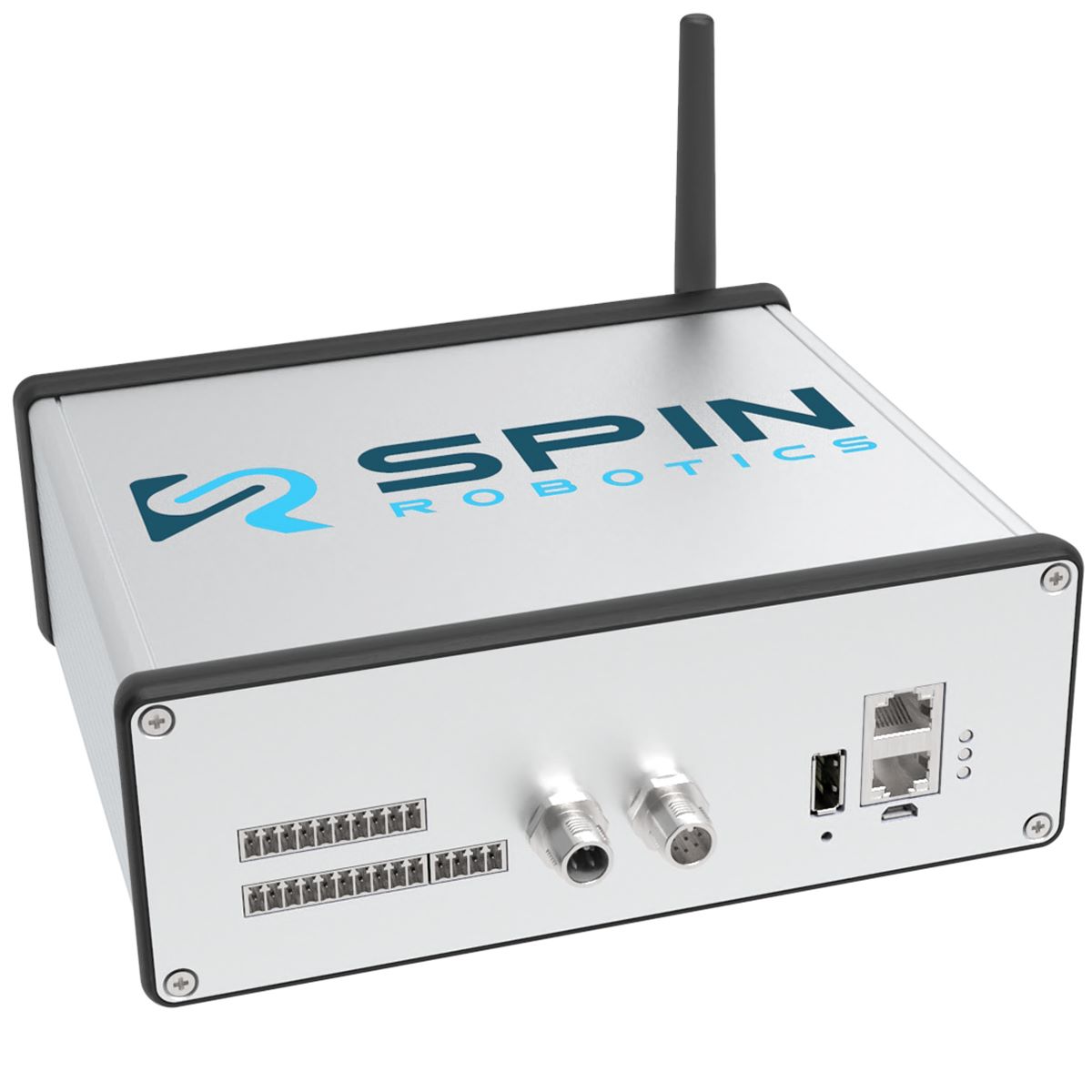

Spin Bridge
- Connecting tool and robot controller
- Sophisticated result management

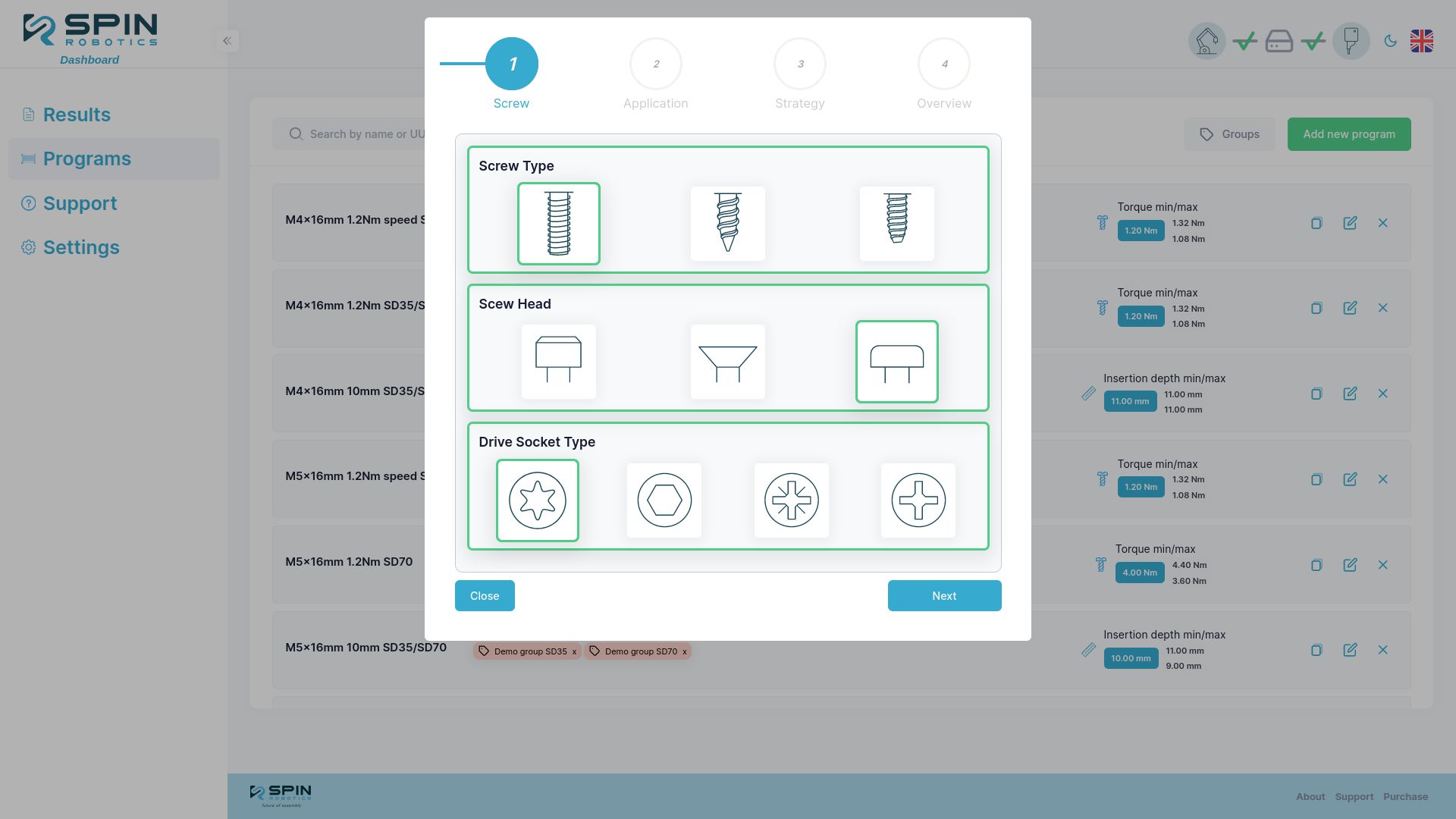

- 6 different screw strategies

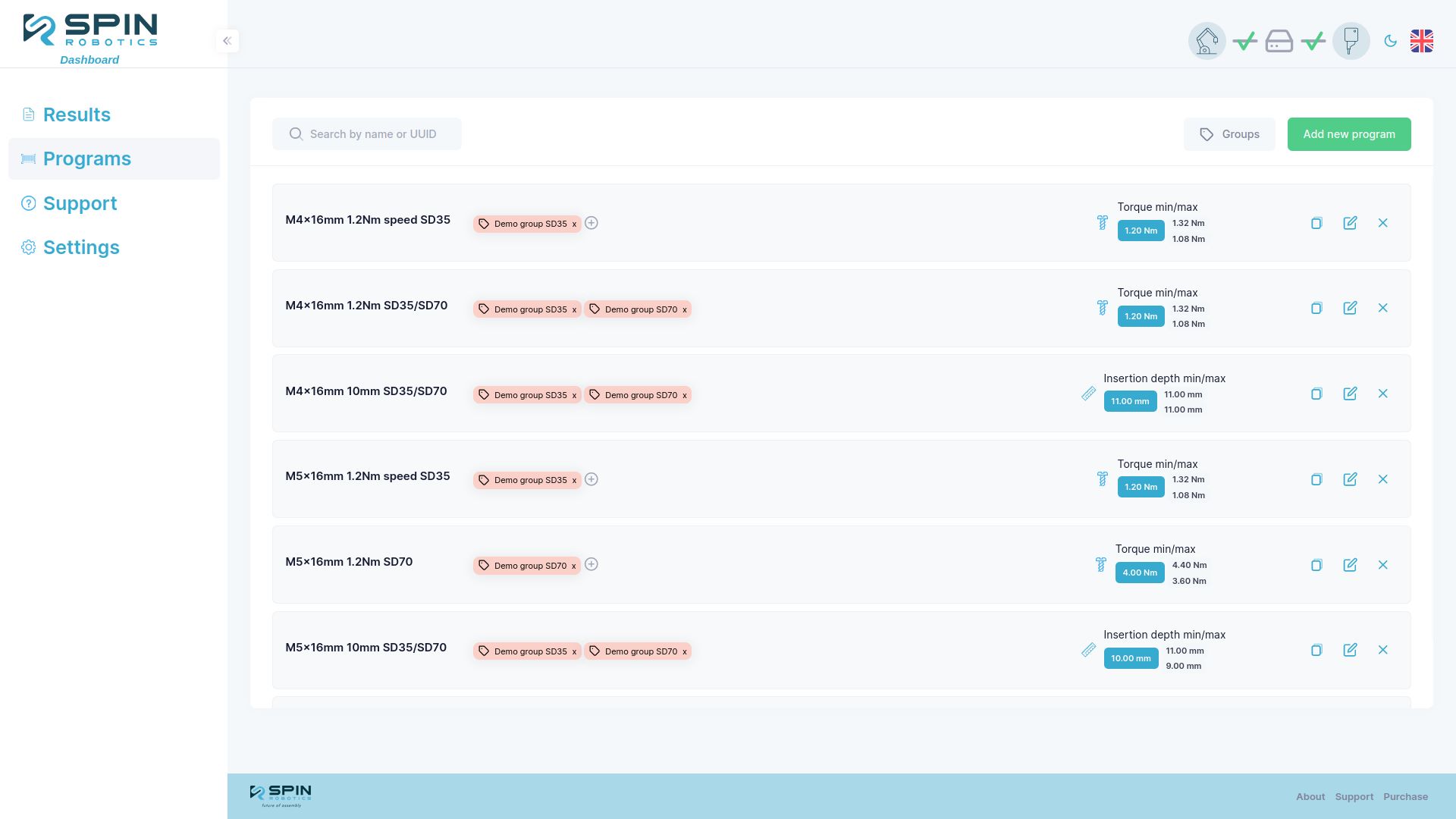

- +300 screw programs

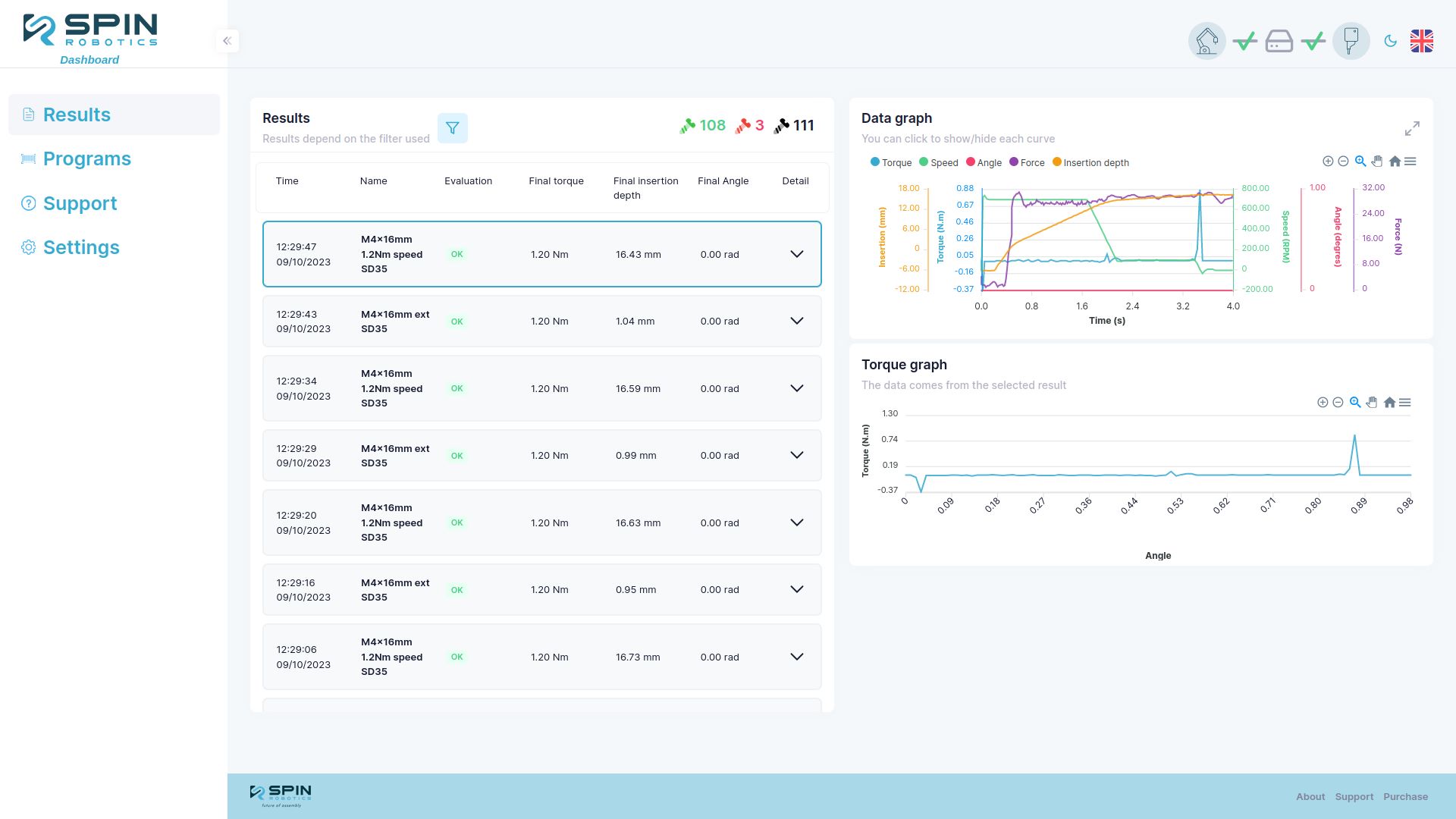

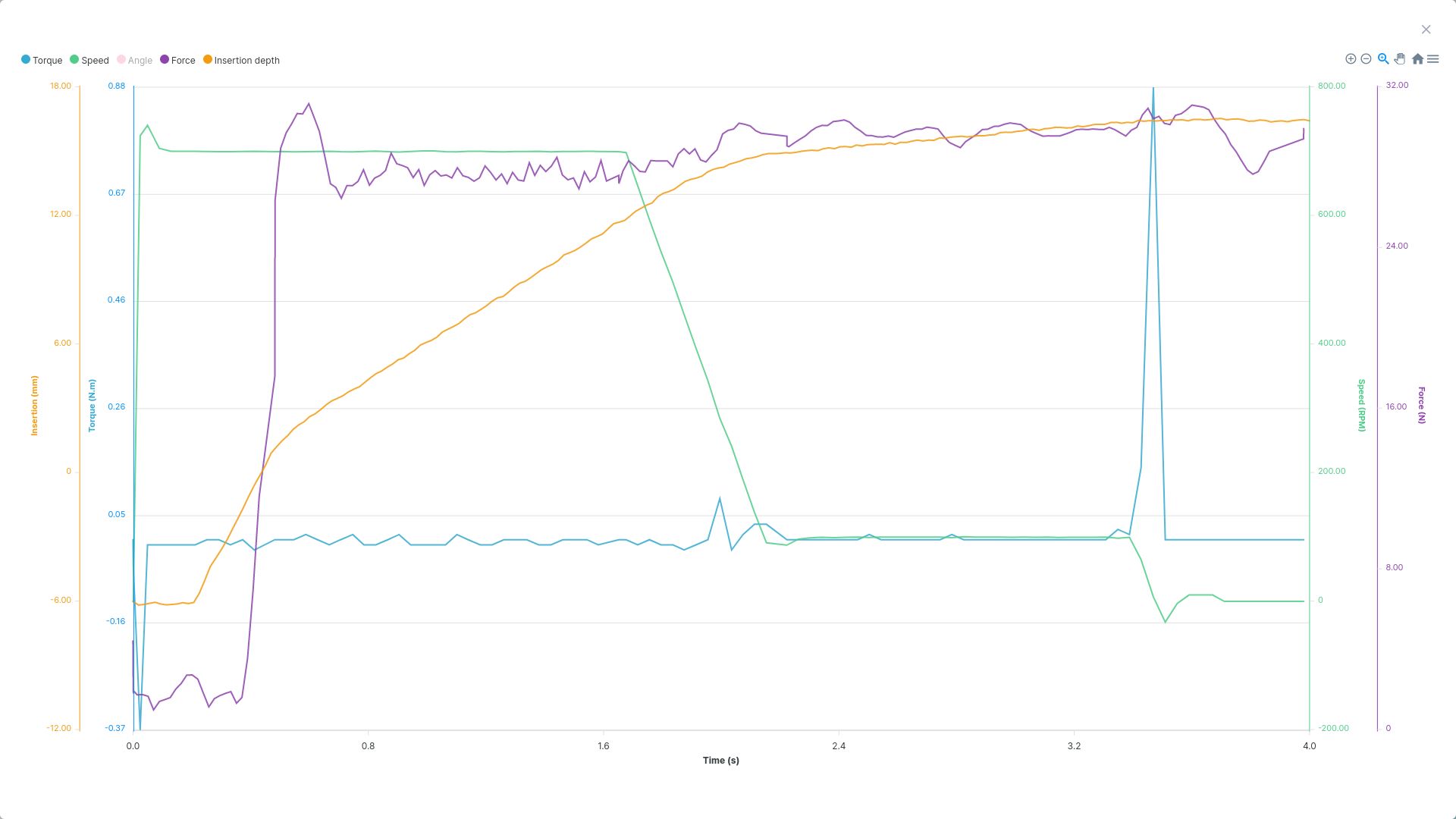

- +3000 results & traces (torque, angle, date, time, report)
- OPC-UA Server for easy ERP & MES integration
What´s in the box
- SD-series collaborative screwdriver (SD35/70)
- SpinBridge – Screwdriver process controller
- SpinMount tool changer
- Unbrako screws (4x) + Allen key
- Magnetic bit holders (6x) + Allen key
- Teach pointer for fast touch up programming
- M12 tool cable (5m)
- M12 power cable (5m)
- Safety IO cable
- Velcro cable straps (4x)
- User Manual
- USB stick (incl. Spin CBunX plugin for KR and user manual)
