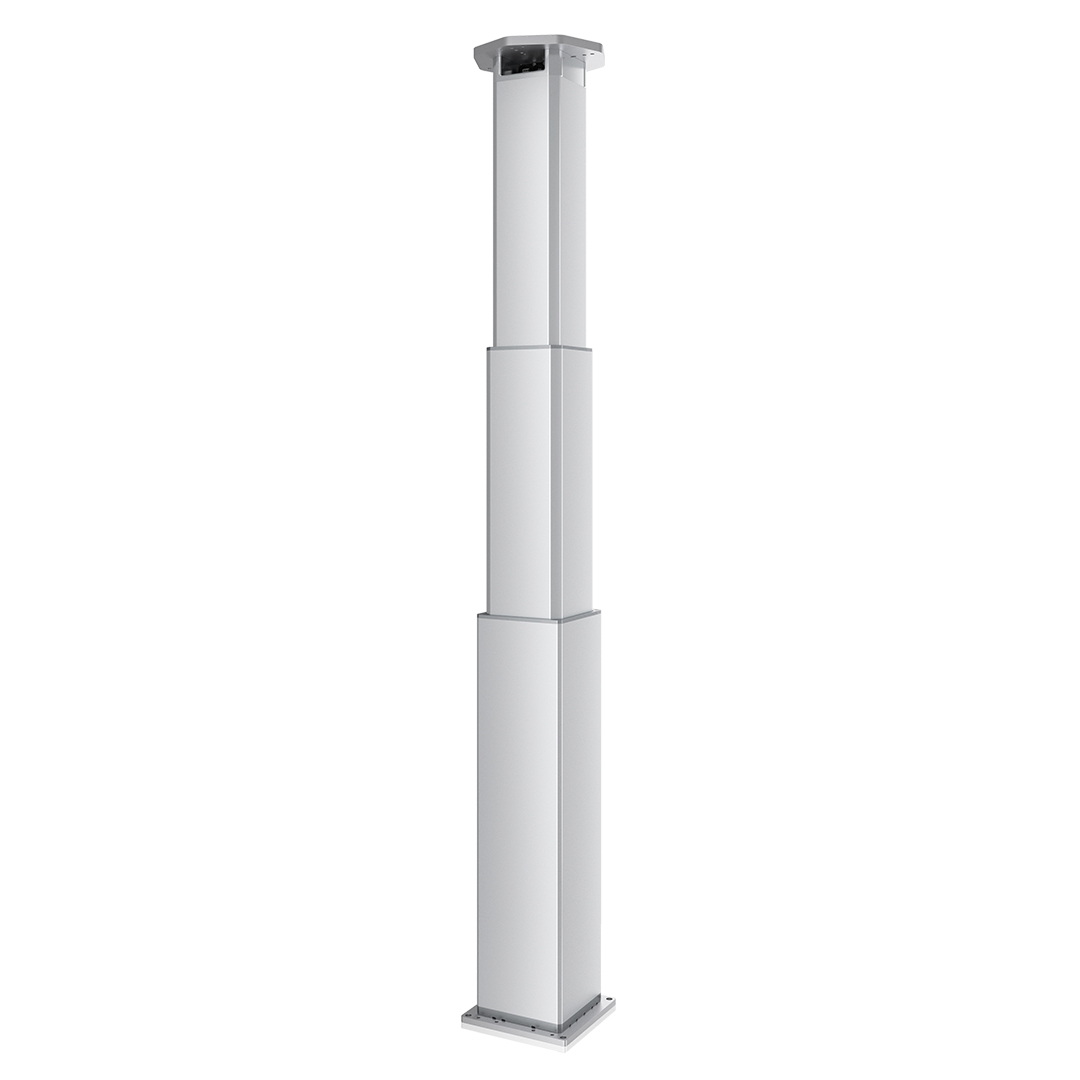

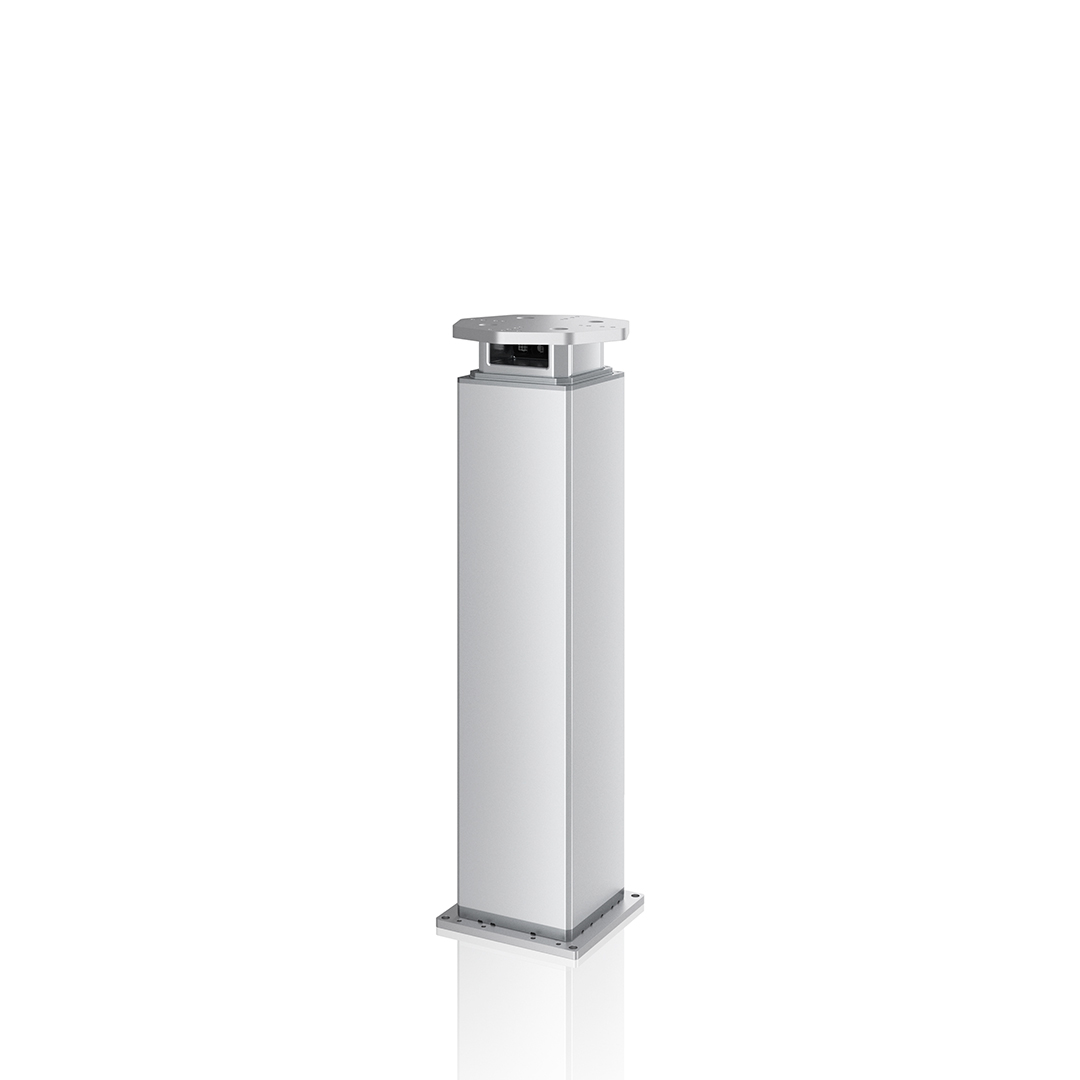

ELEVATE™ - Lifting column for cobot palletisers

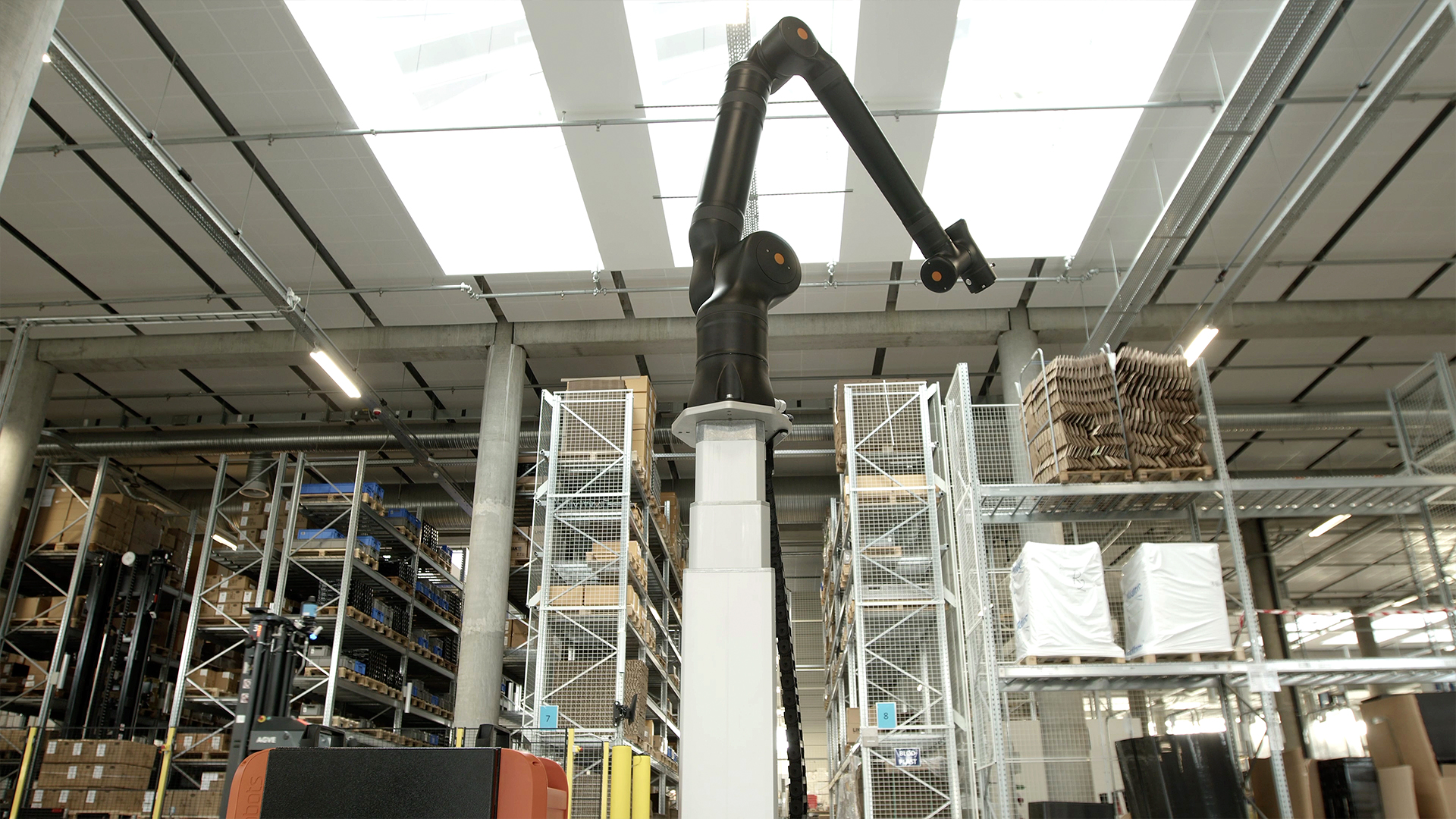

Make your cobot palletizer faster and simpler. ELEVATE is an easy-to-use electric lifting column that extends the range of your cobot in height. Moreover, it delivers on both speed and flexibility to optimize your palletizer. The integrated controller combined with the ELEVATE Cbun facilitates easy and quick integration into your system. It is directly connected to the cobot control box, with no need for an extra control box in between. Up to 100 mm/s speed independent of load and direction is implemented without compromising precision nor stability.
- Plug& Play via CBun plugin
- Fast movement: up to 100 mm/s independent of load and direction
- Strong and solid: up to 1000 N
- Long lifetime with BLDC motor
- Integrated control unit
- Easy to install
- Speed adjustable
- Move to position configurable
- Free of maintenance

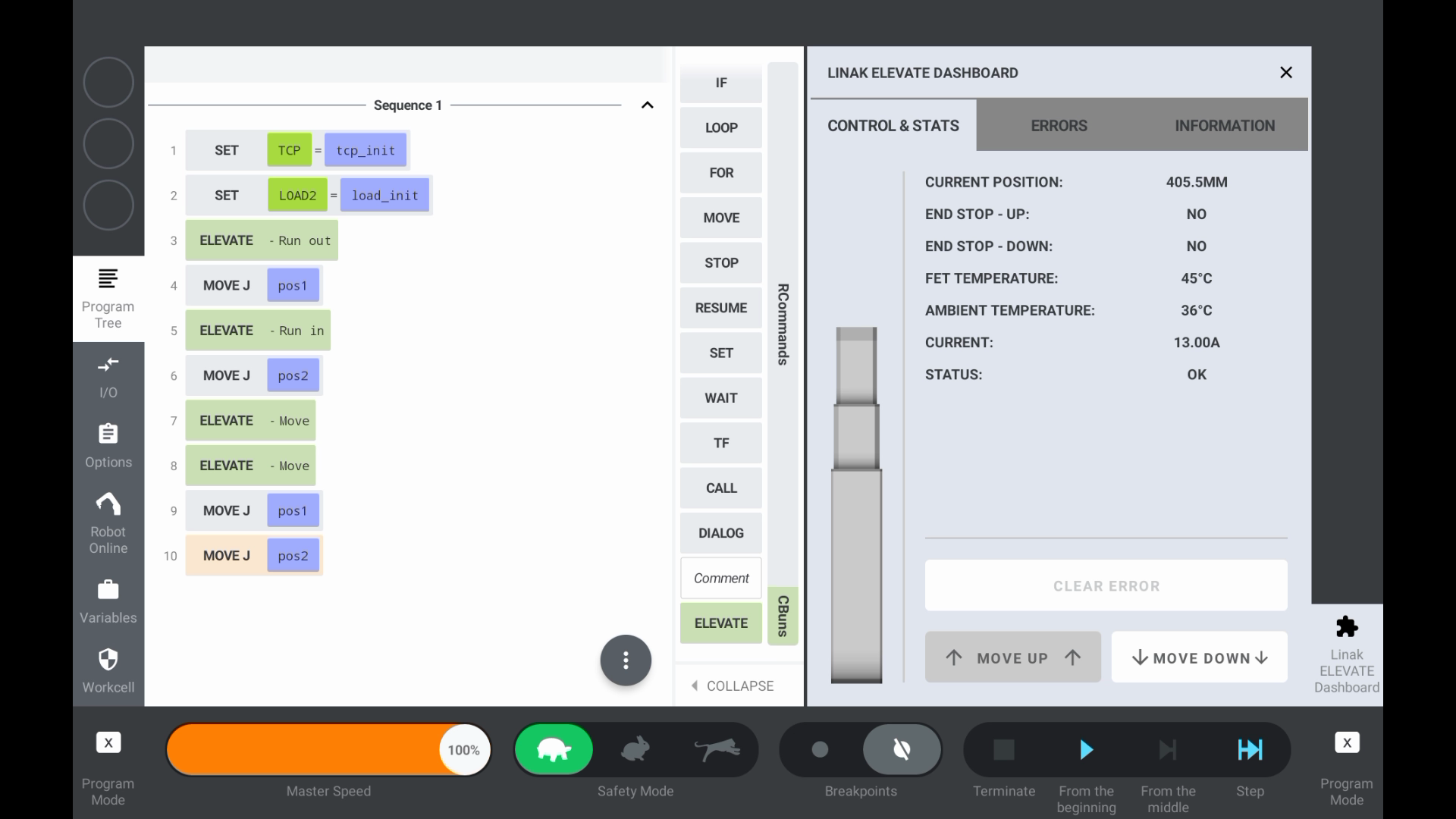

CBun features:
- Program as many positions as you want
- Modify speed and acceleration for each movement
- Choose whether the robot and column move simultaneously or if the robot should wait for completion
- Limit the current consumption of the column
- See the status, errors and historic data over the ELEVATE dashboard
Specifications:
- Position accuracy along the driven axis: +/- 1,5 mm
- Position repeatability: +/- 1,5 mm
- Noise level: 58 dB(A)
- Duty cycle: 20 % at full load
- BLDC motor
- Bending moment - static: 3000 Nm (allowed bending moment between cobot and column, while the column is not moving)
- Bending moment - dynamic: 1400 Nm (allowed bending moment between cobot and column, while the column is running in or out)
- Operating temperature: from +5 to +40 °C
- Protection class: IP4X
- Power supply DC: 24 V
- Current consumption: 6-20 A
- Certifications and standards: IEC 61000-6-(1,2,3,4)
- Weight: 34 kg
- Communication interface: Ethernet Modbus TCP/IP
What’s in the box:
- ELEVATE lifting column
- Power cable, 2-pole, 5 m
- Signal cable, 9-pole, 5 m
- Cable relief + screw
- Kassow Robots mounting plate with four screws M10 x 80 mm 8.8 for the column
- Base mounting plate with four screws M10 x 35 mm 8.8 for the column
